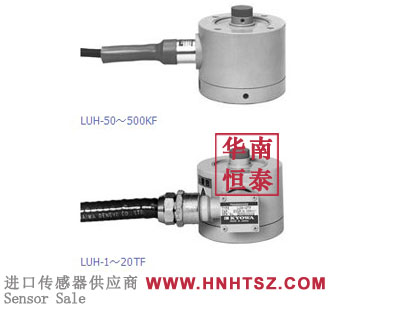

luh-凯发k8官方首页

rated capacity

see table below.

nonlinearity

within ±0.02% ro

hysteresis

within ±0.02% ro

repeatability

0.02% ro or less

zero float

0.02% ro or less for 500 n to 5 kn

rated output

2 mv/v ±0.1%

environmental characteristics

safe temperature

-35 to 80°c

compensated temperature

-10 to 60°c

temperature effect on zero

within ±0.0015% ro/°c

temperature effect on output

within ±0.001%/°c

electrical characteristics

safe excitation

20 v ac or dc

recommended excitation

1 to 10 v ac or dc

input resistance

350 ω±0.5%

output resistance

350 ω±0.5%

cable  6-conductor (0.5 mm2) chloroprene shielded cable,

9.5 mm diameter by 5 m long, with crimp-style terminals for 4 mm

(shield wire is not connected to the case.)

mechanical properties

safe overloads

150%

natural frequencies

see table below.

weight

see table below.

others

drop prevention stopper mountable (*)

ultimate overload

1000% (500 n to 5 kn)
