shape:enclosed structure with inert gas inside
nonlinearity: ±0.02%ro or less
direction of force: high-precision tensile compression dual-purpose load sensor

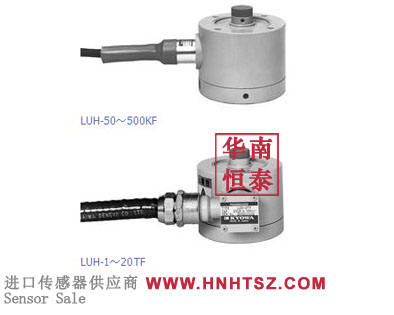

model:luh-50kf,luh-100kf,luh-200kf,luh-500kf,luh-1tf,luh-2tf,luh-5tf,luh-10tf,luh-20tf
product description: luh-1tf use for measuring tension or compression loads with an airtight seal, filled with inert gas and excellent zero float characteristics.

china shenzhen huanan hengtai industrial co.,ltd sale luh-1tf excellent performance in terms of stability and reliability. its structural design is reasonable, the selection of high-quality materials, and strict process treatment and quality control ensure that the sensor can maintain stable performance during long-term use. in addition, the sensor also has the characteristics of strong anti-interference ability and long service life, which can work normally in a variety of harsh environments to provide users with reliable measurement services.

inquiry for quotation→e-mail:sales@hnhtsz.com

【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【kyowa load cell luh-1tf information】

note: the following information is for reference, please refer to kyowa version
kyowa load cell luh-1tf datasheet download：

kyowa load cell luh-1tf features：

rated capacity	see table below.
nonlinearity	within ±0.02% ro
hysteresis	within ±0.02% ro
repeatability	0.02% ro or less
zero float	0.02% ro or less for 500 n to 5 kn
rated output	2 mv/v ±0.1%

environmental characteristics
safe temperature				-35 to 80°c
compensated temperature				-10 to 60°c
temperature effect on zero				within ±0.0015% ro/°c
temperature effect on output				within ±0.001%/°c
electrical characteristics
safe excitation			20 v ac or dc
recommended excitation			1 to 10 v ac or dc
input resistance			350 ω±0.5%
output resistance			350 ω±0.5%
cable 6-conductor (0.5 mm2) chloroprene shielded cable,
9.5 mm diameter by 5 m long, with crimp-style terminals for 4 mm
(shield wire is not connected to the case.)
mechanical properties
safe overloads		150%
natural frequencies		see table below.
weight		see table below.
others		drop prevention stopper mountable (*)
ultimate overload		1000% (500 n to 5 kn)
