anyload load cell

101bs-凯发k8官方首页

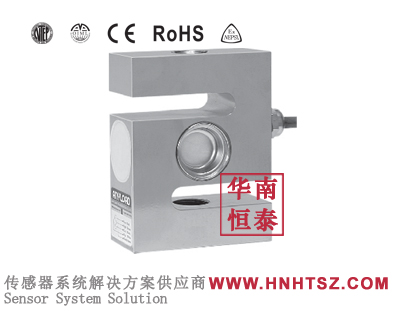

shape: s type load cell
material:17-4ph stainless steel
load direction：compression & tention
model:101bs-300kg 101bs-500kg 101bs-1t 101bs-2t 101bs-5t 101bs-10t 101bs-500lb 101bs-1klb 101bs-1.5klb 101bs-2klb 101bs-5klb 101bs-10klb 101bs-15klb 101bs-20klb
product description: 101bs-2klb is a kind of universal material testing machine, which can be used either single or multiple at the same time. it is easy to install and debug. application: mechanical scale transformation

shenzhen huanan hengtai industrial co.,ltd 101bs-2klb is to complete the conversion of external forces into electrical signals.the sensor is made of high quality metal and sealed with plastic.it is suitable for various electronic weighing equipment such as hook scale, belt scale, batching system, packing scale, electromechanical combination scale and special force measuring device, hook scale, machine change scale and hopper scale.

note: the following information is for reference, please refer to anyload version

【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【anyload load cell 101bs-2klb information】
anyload load cell 101bs-2klb is hot selling product in china, quality goods, after-sale protection. if you have any question, welcome to e-mail:sales@hnhtsz.com
anyload load cell 101bs-2klb datasheet download：

anyload load cell 101bs-2klb features：

●material: stainless steel

●rated capacities: 500lb, 1klb, 1.5klb, 2klb, 2.5klb, 3klb, 5klb, 10klb, 15klb, 20klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t

●full scale output: 2mv/v ± 1%

●safe overload: 150%

●breaking overload: 300%

●ip rating: ip68

●ntep 1:4 500 class iii, single cell certified from 100lb-500lb

●ntep 1:5 500 class iii, single cell certified from 1klb-20klb

●oiml maa c3, y=17 000 certified from 200kg-1.5t

●maa c4.5, y=14 000 certified from 2t-10t

●ce, rohs and ex certified

●measurement ukraine certified

anyload load cell 101bs-2klb dimension：

anyload load cell 101bs-2klb series models：

101bs-300kg 101bs-500kg 101bs-1t 101bs-2t 101bs-5t 101bs-10t 101bs-500lb 101bs-1klb 101bs-1.5klb 101bs-2klb 101bs-5klb 101bs-10klb 101bs-15klb 101bs-20klb

101bs-1000kg 101bs-2000kg 101bs-5000kg 101bs-10000kg

101bs-1000lb 101bs-1500lb 101bs-2000lb 101bs-5000lb 101bs-10000lb 101bs-15000lb 101bs-20000lb

shenzhen huanan hengtai industrial co.,ltd supply 101bs-2klbis the load cell adopts the elastic body as double-connected or sheared s-beam structure, compact structure, used for tensile force and compression force measurement, strong lateral force resistance, high precision, good symmetry of pull and pressure output, stable and reliable performance. wide range of measuring range, easy to install and use, suitable for hook scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine scales, hopper scales and other electronic weighing equipment .

if you want to know more about 101bs-2klb price, 101bs-2klb delivery time, 101bs-2klb manufacturer, 101bs-2klb product information, 101bs-2klb product specification, 101bs-2klb technical parameters, 101bs-2klb installation and debugging, 101bs-2klb wiring mode, please contact e-mail:sales@hnhtsz.com
