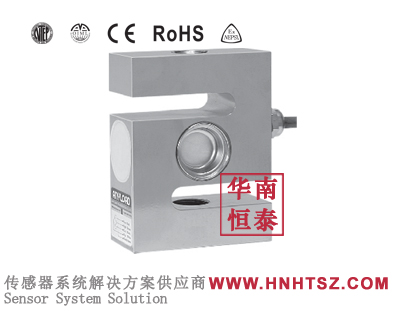

anyload load cell

101bs-凯发k8官方首页

shape: s type load cell
material:17-4ph stainless steel
load direction：compression & tention
model:101bs-300kg 101bs-500kg 101bs-1t 101bs-2t 101bs-5t 101bs-10t 101bs-500lb 101bs-1klb 101bs-1.5klb 101bs-2klb 101bs-5klb 101bs-10klb 101bs-15klb 101bs-20klb
product description: 101bs-1klb is a kind of universal material testing machine, which can be used either single or multiple at the same time. it is easy to install and debug. application: mechanical scale transformation

shenzhen huanan hengtai industrial co.,ltd 101bs-1klb is structure belongs to the s-type design. the s-type tension pressure sensor is the most commonly used pull and pressure sensor in industrial applications. it is widely used in water conservancy and hydropower, railway transportation, intelligent building, production automation, aerospace, military, petrochemical, oil well, power, ships, machine tools, pipelines and many other industries. the sensor is made of high quality metal and sealed with sealant for easy installation and convenient use. applicable to all kinds of electronic weighing equipment suitable for hook scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine scales, hopper scales, etc.

note: the following information is for reference, please refer to anyload version

【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【anyload load cell 101bs-1klb information】
anyload load cell 101bs-1klb is hot selling product in china, quality goods, after-sale protection. if you have any question, welcome to e-mail:sales@hnhtsz.com
anyload load cell 101bs-1klb datasheet download：

anyload load cell 101bs-1klb features：

●material: stainless steel

●rated capacities: 500lb, 1klb, 1.5klb, 2klb, 2.5klb, 3klb, 5klb, 10klb, 15klb, 20klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t

●full scale output: 2mv/v ± 1%

●safe overload: 150%

●breaking overload: 300%

●ip rating: ip68

●ntep 1:4 500 class iii, single cell certified from 100lb-500lb

●ntep 1:5 500 class iii, single cell certified from 1klb-20klb

●oiml maa c3, y=17 000 certified from 200kg-1.5t

●maa c4.5, y=14 000 certified from 2t-10t

●ce, rohs and ex certified

●measurement ukraine certified

anyload load cell 101bs-1klb dimension：

anyload load cell 101bs-1klb series models：

101bs-300kg 101bs-500kg 101bs-1t 101bs-2t 101bs-5t 101bs-10t 101bs-500lb 101bs-1klb 101bs-1.5klb 101bs-2klb 101bs-5klb 101bs-10klb 101bs-15klb 101bs-20klb

101bs-1000kg 101bs-2000kg 101bs-5000kg 101bs-10000kg

101bs-1000lb 101bs-1500lb 101bs-2000lb 101bs-5000lb 101bs-10000lb 101bs-15000lb 101bs-20000lb

shenzhen huanan hengtai industrial co.,ltd supply 101bs-1klbis s structure is designed, it can be physical signal into electrical signal to accurately measure, tension sensor is also called resistance strain sensor, tension sensor has simple structure, wide measuring range, high precision, can adapt to all kinds of bad conditions, such as hook scales, belt scales, batching systems, packing scale, mechanical and electrical combination scale and special load device, crane scale, machine to scale, hopper scale and other various types of electronic weighing equipment.

if you want to know more about 101bs-1klb price, 101bs-1klb delivery time, 101bs-1klb manufacturer, 101bs-1klb product information, 101bs-1klb product specification, 101bs-1klb technical parameters, 101bs-1klb installation and debugging, 101bs-1klb wiring mode, please contact e-mail:sales@hnhtsz.com
