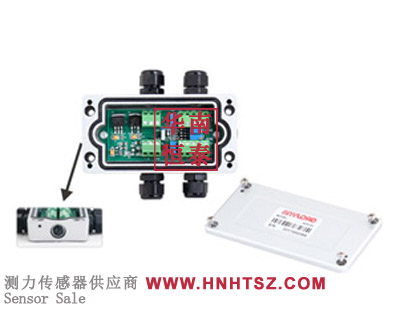

【shenzhen huanan hengtai industrial co. ltd】sale anyload a2a-d2 series strain gage amplifiers provide load cell and transducer signal conditioning.  the a2a-d2 strain gage amplifiers are dc-powered amplifiers that can drive up to 2 x 350ω load cells connected directly. it can also drive several load cells up to 4 x 350ω load cells or 8 x 700ω load cells through a junction box. equipped with individually adjustable resistors, the a2a-d2 strain gage amplifiers are watertight with an aluminum casting enclosure and have a wide input signal from 0±36mv and an output signal of 0±10v or 4-20ma. the a2a-d2 amplifier is now equipped with two options of excitation voltages (5vdc or 12vdc) to comply with the desired requirements in various applications.

note: the content of this product page is for reference only, and anyload manufacturer's information shall prevail

anyload load cell amplifiers a2a-d2 specifications:

specifications a2a-d2

load cell type all strain gage types

capacity up to 2x350ω directly connected or 4x350ω or 8x700ω or 8x350ω through a junction box

power supply 24v dc ± 10%

input range 0±36mv

maximum power voltage (dc) 30v, 2.5a

output signal (voltage) 0v±10v

output signal (current) 4ma-20ma

enclosure material aluminum casting

operating temperature range -10 to 50°c or 14 to 122°f

ip rating ip66

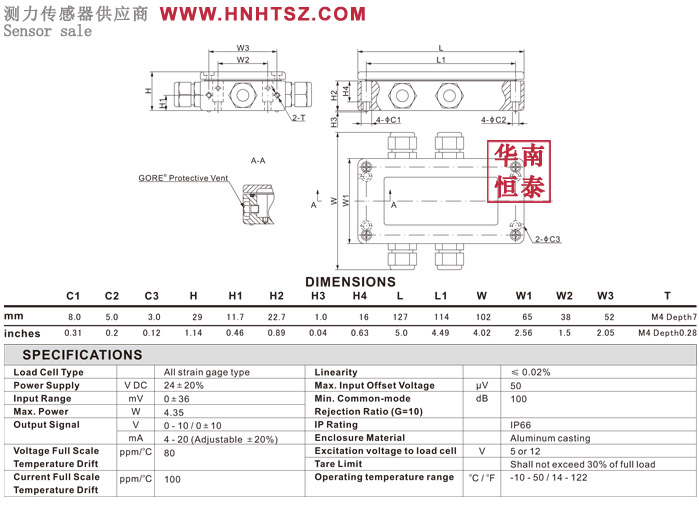

anyload load cell amplifiers a2a-d2 dimensions:

anyload a2a-d2 product datasheet download：
