【shenzhen huanan hengtai industrial co. ltd】sale anyload a1a-22b strain gage amplifiers provide load cell and transducer signal conditioning. the a1a-22b strain gage amplifiers are dc-powered amplifiers that can drive 1 load cell connected directly. they can also drive several load cells up to 4 x 350ω load cells or 8 x 700ω load cells through a junction box. housed in an aluminum casting enclosure, the a1a amplifiers have 2 through holes for easy installation and a wide output signal of 0v-10v or 4ma-20ma. the a1a-22b amplifier is equipped with compatibility in most models of i/o link of balluff.
note: the content of this product page is for reference only, and anyload manufacturer's information shall prevail
anyload load cell amplifiers a2a-d2 specifications:
specifications a1a-22b
load cell type all strain gage types
capacity 1x350ω directly connected or 4x350ω or 8x700ω through a junction box
compatibility compatible with io-link balluff's
power supply 24v dc ± 10%
input range 0mv- 30mv
maximum power voltage (dc) 30v, 2.5a
output signal (voltage) 0v-10v
output signal (current) 4ma-20ma
enclosure material aluminum casting
operating temperature range -10 to 50°c or 14 to 122°f
ip rating ip66

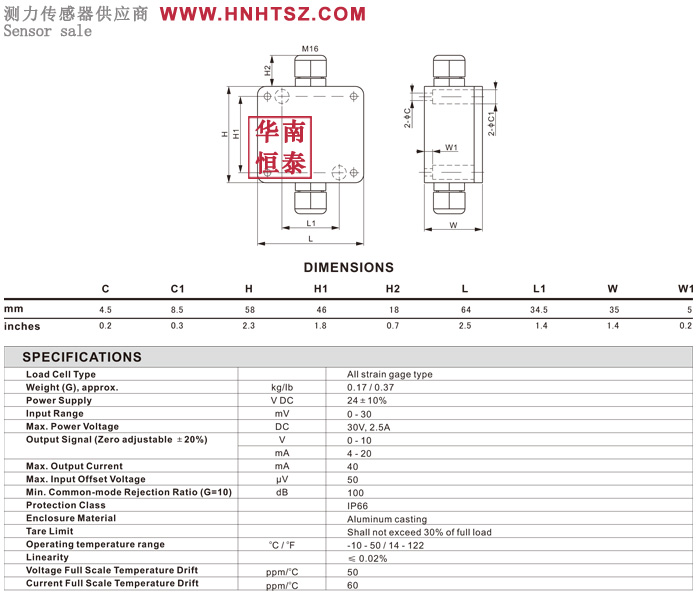

anyload load cell amplifiers a1a-22b dimensions:
anyload load cell amplifiers a1a-22b product datasheet download:
