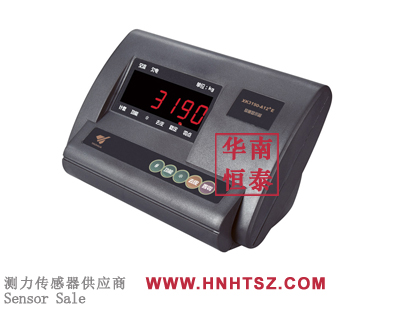

xk3190-a12 weighing display instrument product performance description:

basic function

high-precision a/d conversion, readability up to 1/30000;

it is convenient to call the internal code display and replace the sensitivity weight observation and analysis tolerance;

special software technology to enhance the vibration resistance of the system;

zero tracking range, zero setting (boot/manual) range, can be set separately;

the speed, amplitude and stability time of digital filtering can be set.

with weighing and counting function; (single weight with power off protection)

multiple backlight modes to choose from;

random charging; undervoltage indication and protection device;

6v/4ah maintenance-free batteries are configured

assorting

technical parameter

a/d conversion mode :σ-δ conversion mode

a/d conversion rate :20 times/second

maximum a/d conversion :20bit

input signal range :-10mv ~ 15mv

input sensitivity :≥1μv/e

sensor bridge power supply c5v;

xk3190-a12 weighing display instrument product manual download:
