china shenzhen huanan hengtai industrial co.,ltd sale stc-5t it has good linearity and repeatability. when measuring the same object multiple times, the sensor can maintain consistent measurement results, which is especially important for long-term monitoring and recording of data. at the same time, the output signal of the sensor has a good linear relationship with the input force, which is convenient for subsequent data processing and analysis.
inquiry for quotation→e-mail:sales@hnhtsz.com
【support services】
in stock, quality assurance, price concessions, fast delivery.
warranty period: 12 months
provide sensor technology support and selection recommendation

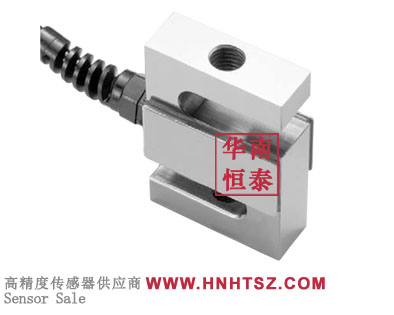

【vishay celtron load cell stc-5t information】
note: the following information is for reference, please refer to vishay celtron version
vishay celtron load cell stc-5t datasheet download：
vishay celtron load cell stc-5t features：
recommended excitation voltage :10v,ac/dc
operating temperature range :-10℃~ 40℃
excitation voltage :15v,ac/dc
temperature compensation range :-20℃~ 60℃
rated output :3mv/v±10%
zero point balance :±1%
creep error(20 minutes) :0.02%r.o
input impedance: 385ω±5ω
output impedance: 350ω±3ω
insulation impedance gt:5000mω
non-linearity :±0.02%r.o(ss:0.05)
repeatability :±0.03%r.o
safe load :150%
failure load :300%
moisture-proof rubber seal
bidirectional (tension/compression)
vishay celtron load cell stc-5t series models：
stc-5t stc-5kgal,stc-10kgal
stc-25kg stc-50kg stc-100kg stc-150kg stc-250kg stc-500kg stc-1t stc-2t stc-2.5t stc-5t
if you want to know more about stc-5t price, stc-5t delivery time, stc-5t manufacturer, stc-5t product information, stc-5t product specification,stc-5t technical parameters, stc-5t installation and debugging, stc-5t wiring mode, please contact e-mail:sales@hnhtsz.com
