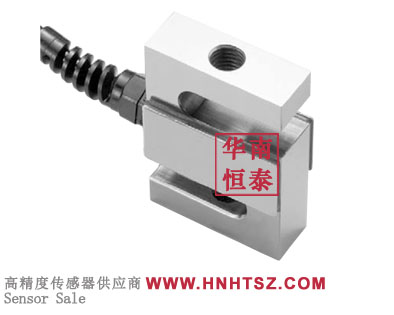

china shenzhen huanan hengtai industrial co.,ltd sale stc-500kg not only suitable for tension measurement, but also for pressure measurement, this two-way force measurement function makes it suitable for more complex working environments.
inquiry for quotation→e-mail:sales@hnhtsz.com
【support services】
in stock, quality assurance, price concessions, fast delivery.
warranty period: 12 months
provide sensor technology support and selection recommendation
【vishay celtron load cell stc-500kg information】
note: the following information is for reference, please refer to vishay celtron version
vishay celtron load cell stc-500kg datasheet download：
vishay celtron load cell stc-500kg features：
recommended excitation voltage :10v,ac/dc
operating temperature range :-10℃~ 40℃
excitation voltage :15v,ac/dc
temperature compensation range :-20℃~ 60℃
rated output :3mv/v±10%
zero point balance :±1%
creep error(20 minutes) :0.02%r.o
input impedance: 385ω±5ω
output impedance: 350ω±3ω
insulation impedance gt:5000mω
non-linearity :±0.02%r.o(ss:0.05)
repeatability :±0.03%r.o
safe load :150%
failure load :300%
moisture-proof rubber seal
bidirectional (tension/compression)
vishay celtron load cell stc-500kg series models：
stc-500kg stc-5kgal,stc-10kgal
stc-25kg stc-50kg stc-100kg stc-150kg stc-250kg stc-500kg stc-1t stc-2t stc-2.5t stc-5t
if you want to know more about stc-500kg price, stc-500kg delivery time, stc-500kg manufacturer, stc-500kg product information, stc-500kg product specification,stc-500kg technical parameters, stc-500kg installation and debugging, stc-500kg wiring mode, please contact e-mail:sales@hnhtsz.com
