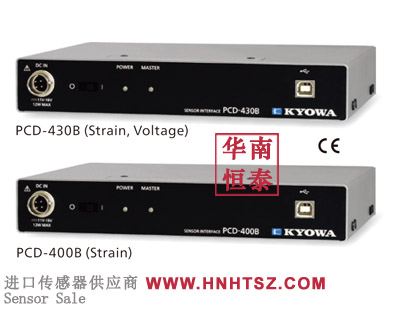

kyowa strain tester the pcd-400b is a powerful, high-performance test device with features and specifications that allow it to show outstanding performance in a variety of stress-strain test applications. the following is a detailed description of the performance of the pcd-400b, including its features, technical specifications, and application benefits.
first, product characteristics
1. high sampling frequency: the pcd-400b has a sampling frequency of up to 10khz, which means that it can quickly capture and record small strain changes, providing more accurate data support for researchers.
2. multi-channel measurement: through the stackable connection, the pcd-400b can be simply expanded to a maximum of 16 channels to achieve multi-channel measurement at the same time, greatly improving the test efficiency.
3.usb connection: the tester uses usb2.0 interface (in line with high-speed usb standard, support usb3.0), making the connection with the computer more convenient, faster data transmission.
4. simple configuration, user-friendly: the design of the pcd-400b focuses on user experience, the configuration is simple and easy to understand, and users can start the test work by simple operation.
5. high stability: the tester has excellent stability and can maintain accurate measurement results under various environmental conditions to ensure the reliability of data.
2. technical specifications
1. measurement object: cdd-400b is suitable for the measurement of strain gauge and strain gauge sensor, supporting a variety of resistance values of strain gauge.
2. number of input channels: 4 input channels to meet most test requirements.
3. input mode: balance differential input to ensure the accuracy of measurement.
4. synchronous operation: up to 4 pcd-400bs can be synchronized (a total of 16 channels) to achieve large-scale testing.
5. range and accuracy: provide multiple range options, the strain is 200, 500, 1k, 2k, 5k, 10k, 20k×10-6 variable, the accuracy reaches ±0.5%fs or less.
6. response frequency: dc ~ 200hz to meet various test requirements.
7. working environment: working temperature 0 to 40℃, working humidity 20 to 85% (no condensation), to ensure that it can work normally under various environmental conditions.
3. application advantages
1. wide range of applications: pcd-400b is suitable for stress and strain testing of various materials and structures, such as metal, plastic, rubber, composite materials, etc.
2. high precision measurement: high sampling frequency and excellent stability ensure high precision measurement, providing accurate and reliable data support for researchers.
3. high test efficiency: multi-channel simultaneous measurement and fast data transmission greatly improve the test efficiency, saving the time and energy of researchers.
4. good user experience: the easy-to-understand operation interface and convenient connection make it easy for users to get started and quickly complete the test work.
in summary, kyowa strain tester cdd-400b with its high sampling frequency, multi-channel measurement, usb connection, high stability and other characteristics and technical specifications, as well as a wide range of application advantages and good user experience, in the field of stress and strain testing shows excellent performance and strong competitiveness.
kyowa strain tester pcd-400b product manual download:
