shape:enclosed structure with inert gas inside
nonlinearity: ±0.02%ro or less
direction of force: high-precision tensile compression dual-purpose load sensor

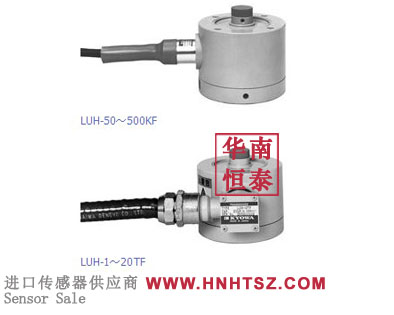

model:luh-50kf,luh-100kf,luh-200kf,luh-500kf,luh-1tf,luh-2tf,luh-5tf,luh-10tf,luh-20tf
product description: luh-100kf use for measuring tension or compression loads with an airtight seal, filled with inert gas and excellent zero float characteristics.

china shenzhen huanan hengtai industrial co.,ltd sale luh-100kf is a kind of high-precision and high-stability mechanical measurement equipment, and can be used as a compression structure sensor, which can accurately perceive and measure the mechanical changes of objects in the process of stretching and compression. the sensor is made of advanced materials and processes, with excellent durability and reliability, and can work stably in a variety of harsh environments. it has a wide measuring range and is suitable for mechanical measurement needs in different fields and scenarios.

inquiry for quotation→e-mail:sales@hnhtsz.com

【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【kyowa load cell luh-100kf information】

note: the following information is for reference, please refer to kyowa version
kyowa load cell luh-100kf datasheet download：

kyowa load cell luh-100kf features：

rated capacity	see table below.
nonlinearity	within ±0.02% ro
hysteresis	within ±0.02% ro
repeatability	0.02% ro or less
zero float	0.02% ro or less for 500 n to 5 kn
rated output	2 mv/v ±0.1%

environmental characteristics
safe temperature				-35 to 80°c
compensated temperature				-10 to 60°c
temperature effect on zero				within ±0.0015% ro/°c
temperature effect on output				within ±0.001%/°c
electrical characteristics
safe excitation			20 v ac or dc
recommended excitation			1 to 10 v ac or dc
input resistance			350 ω±0.5%
output resistance			350 ω±0.5%
cable 6-conductor (0.5 mm2) chloroprene shielded cable,
9.5 mm diameter by 5 m long, with crimp-style terminals for 4 mm
(shield wire is not connected to the case.)
mechanical properties
safe overloads		150%
natural frequencies		see table below.
weight		see table below.
others		drop prevention stopper mountable (*)
ultimate overload		1000% (500 n to 5 kn)
