china shenzhen huanan hengtai industrial co.,ltd sale lch-20tf durable materials and advanced manufacturing processes are usually used to ensure stability and reliability in a variety of harsh environments. at the same time, the sensor also has waterproof, dustproof, anti-interference and other characteristics, can adapt to a variety of complex working environment.
inquiry for quotation→e-mail:sales@hnhtsz.com
【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation

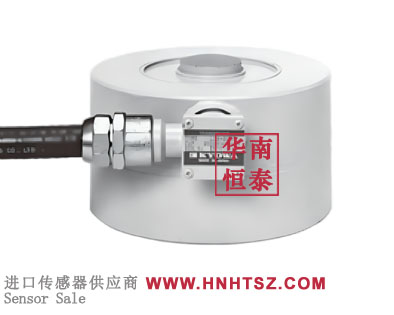

【kyowa load cell lch-20tf information】
note: the following information is for reference, please refer to kyowa version
kyowa load cell lch-20tf datasheet download：
kyowa load cell lch-20tf features：
nonlinearity: ±0.02%ro or less
lag: ±0.02%ro or less
repeatability: 0.02%ro or less
rated output: 2mv/v (4000×10-6 variable) ±0.1%
allowable operating temperature range: 35~80℃
temperature compensation range: -10-60℃
zero temperature effect: ±0.0015%ro/℃ or less
output temperature effect: ±0.001%ro/℃ or less
maximum excitation voltage: 20v ac or dc
recommended excitation voltage: 1-10v ac or dc
input resistance: 350ω±0.5%
output resistance: 350ω±0.5%
cable: 0.5mm2, 6-core shielded neoprene armored cable 5m, outer diameter 9.5mm, front end crimping terminal (m4)(shielded cable is not connected to the host)
safe overload: 200%
protection level: ip67 (iec 60529)
kyowa load cell lch-20tf dimension：
kyowa load cell lch-20tf series models：
lch-20tf
lch-10tf,lch-20tf
