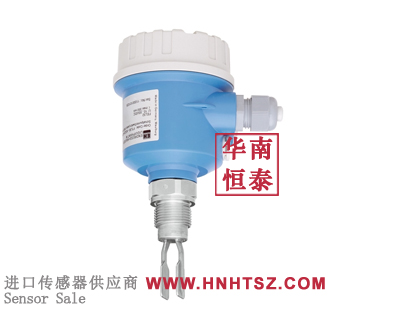

the endress hauser tuning fork limit detection ftl50h-aee2ac2g6a is an integrated tuning fork limit switch, suitable for liquid medium measurement, especially in the fields of food and life sciences

application field

· the liquiphant ftl50h tuning fork limit switch can be used in hazardous areas. it has passed multiple international certifications and obtained hygiene certifications such as 3-a, ehedg, and asme bpe. it is particularly suitable for the fields of food and life sciences. the functional safety level of ftl50h reaches sil2/sil3, with stable measurement values that are not affected by medium flow, disturbance, bubbles, foam, vibration, solid content or adhesion.

· the limit switch with a fully welded housing design is suitable for liquid measurement

· process connection: threaded, flange and sanitary connection (clamp, milk joint, aseptic type, drd, sms, varivent)

· temperature: -50... 150°c (-58 ...  302°f)

· pressure: -1... 64bar (-14.5...) 928psi)

· sensor material: 316l

· international explosion-proof certification, whg overflow protection, sil, sanitary certification, ship class certification

advantage

· it can be used in safety systems with functional safety level requirements of sil2/sil3 and complies with the iec 61508/iec 61511-1 standard

· multiple process connections are available for selection

· equipped with a variety of electronic plug-in types, such as namur, relays, semiconductor thyristors, and pfm signal outputs, it enables connection with various process control systems

· the profibus pa communication protocol can also be selected

· no calibration required: quick and economical device startup mode

· there are no mechanical moving parts, no maintenance required, no wear and tear, and a long service life. it can monitor the damage of the fork body to ensure normal function

· fda-certified materials (pfa edlon)

· liquid limit detection
