china shenzhen huanan hengtai industrial co.,ltd sale stc-3000lb excellent in terms of compatibility, it can dock with a variety of brands and models of measurement equipment, control systems, to achieve data sharing and interoperability. this compatibility allows users to have more options when choosing a measurement system.
inquiry for quotation→e-mail:sales@hnhtsz.com
【support services】
quality assurance, price concessions, fast delivery.
warranty period: 12 months
provide sensor technology support and selection recommendation

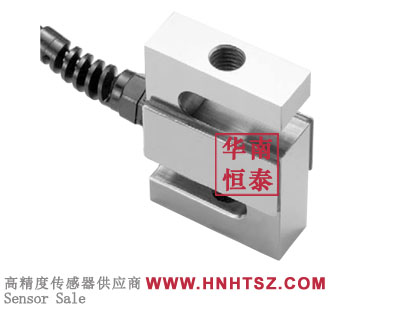

【celtron load cell stc-3000lb information】
note: the following information is for reference, please refer to celtron version
celtron load cell stc-3000lb datasheet download：
celtron load cell stc-3000lb features：
recommended excitation voltage :10v,ac/dc
operating temperature range :-10℃~ 40℃
excitation voltage :15v,ac/dc
temperature compensation range :-20℃~ 60℃
rated output :3mv/v±10%
zero point balance :±1%
creep error(20 minutes) :0.02%r.o
input impedance: 385ω±5ω
output impedance: 350ω±3ω
insulation impedance gt:5000mω
non-linearity :±0.02%r.o(ss:0.05)
repeatability :±0.03%r.o
safe load :150%
failure load :300%
moisture-proof rubber seal
bidirectional (tension/compression)
celtron load cell stc-3000lb series models：
stc-3000lb stc-5kgal,stc-10kgal
stc-25kg stc-50kg stc-100kg stc-150kg stc-250kg stc-500kg stc-1t stc-2t stc-2.5t stc-5t
