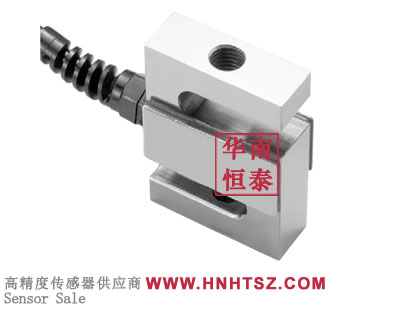

china shenzhen huanan hengtai industrial co.,ltd sale stc-100kg s-type pull and pressure sensor is the most common sensor in the sensor, mainly used to measure the tension and pressure between solids, general people are also called s-type pull pressure sensor, because of its shape like s shape, so it is also used to call s-type load cell. using sealant sealing, easy to install, easy to use. applicable to hook scales, belt scales, batching systems, bags
inquiry for quotation→e-mail:sales@hnhtsz.com
【support services】
in stock, quality assurance, price concessions, fast delivery.
warranty period: 12 months
provide sensor technology support and selection recommendation
【celtron load cell stc-100kg information】
note: the following information is for reference, please refer to celtron version
celtron load cell stc-100kg datasheet download：
celtron load cell stc-100kg features：
recommended excitation voltage :10v,ac/dc
operating temperature range :-10℃~ 40℃
excitation voltage :15v,ac/dc
temperature compensation range :-20℃~ 60℃
rated output :3mv/v±10%
zero point balance :±1%
creep error(20 minutes) :0.02%r.o
input impedance: 385ω±5ω
output impedance: 350ω±3ω
insulation impedance gt:5000mω
non-linearity :±0.02%r.o(ss:0.05)
repeatability :±0.03%r.o
safe load :150%
failure load :300%
moisture-proof rubber seal
bidirectional (tension/compression)
celtron load cell stc-100kg series models：
stc-100kg stc-5kgal,stc-10kgal
stc-25kg stc-50kg stc-100kg stc-150kg stc-250kg stc-500kg stc-1t stc-2t stc-2.5t stc-5t
if you want to know more about stc-100kg price, stc-100kg delivery time, stc-100kg manufacturer, stc-100kg product information, stc-100kg product specification,stc-100kg technical parameters, stc-100kg installation and debugging, stc-100kg wiring mode, please contact e-mail:sales@hnhtsz.com
