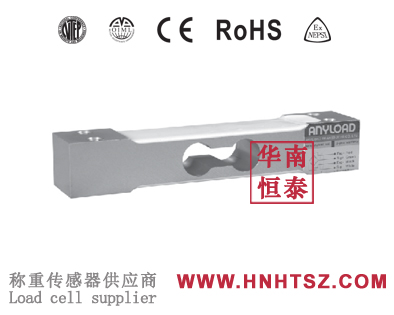

anyload load cell

108ba-凯发k8官方首页

shape:single point type load cell
material:aluminum
load direction：widely used in compression,but also can borrow parts for tension
model:108ba-3kg 108ba-6kg 108ba-15kg 108ba-20kg 108ba-30kg 108ba-35kg 108ba-40kg 108ba-50kg 108ba-60kg 108ba-75kg 108ba-100kg 108ba-150kg
product description: 108ba-75kgis a low-cost, high-precision sensor, which can be directly installed on the base of the scale or used in weighing and force measurement. it can be applied to the packaging scale, electronic

chinese shenzhen huanan hengtai industrial co.,ltd supply 108ba-75kg is easy to install, high precision, stable performance, glue sealing, dust-proof, moisture-proof, compact structure, fine workmanship, simple installation method, can meet the needs of many electronic weighing.

note: the following information is for reference, please refer to anyload version

【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【anyload load cell 108ba-75kg information】
anyload load cell 108ba-75kg is selling product in china, quality goods, after-sale protection. if you have any question, welcome to e-mail:sales@hnhtsz.com
anyload load cell 108ba-75kg datasheet download：

anyload load cell 108ba-75kg features：

●material: aluminum

●rated capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg

●full scale output: 2mv/v ± 10%

●safe overload: 150%

●breaking overload: 300%

●ip rating: ip66

●oiml c3, y=4 300 certified from 10kg-150kg

●ce, rohs, ntep, and ex certified

●measurement ukraine certified

●measurement spain certified

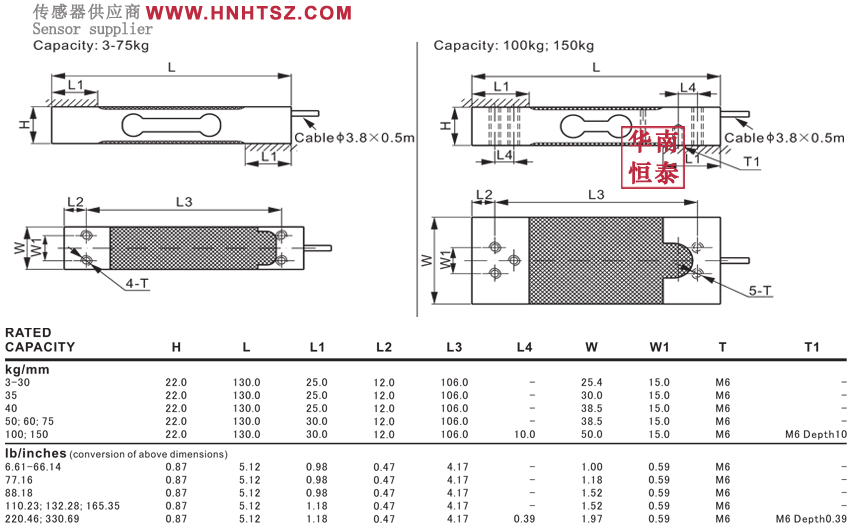

anyload load cell 108ba-75kg dimension：

anyload load cell 108ba-75kg series models：

108ba-3kg 108ba-6kg 108ba-15kg 108ba-20kg 108ba-30kg 108ba-35kg 108ba-40kg 108ba-50kg 108ba-60kg 108ba-75kg 108ba-100kg 108ba-150kg

shenzhen hnht supplies 108ba-75kgis a kind of single-point sensor. its shape design is simple, lively, less material, lighter weight than other types of sensors, so it becomes a spokesman of low cost and high precision. on the other hand, the single-point sensor has excellent anti-eccentric load performance and can be installed directly on the base of the scale. and weighing platform is an ideal choice for oem applications such as electronic scales and weighing machines.

if you want to know more about 108ba-75kg price, 108ba-75kg delivery time, 108ba-75kg manufacturer, 108ba-75kg product information, 108ba-75kg product specification, 108ba-75kg technical parameters, 108ba-75kg installation and debugging, 108ba-75kg wiring mode, please contact e-mail:sales@hnhtsz.com
