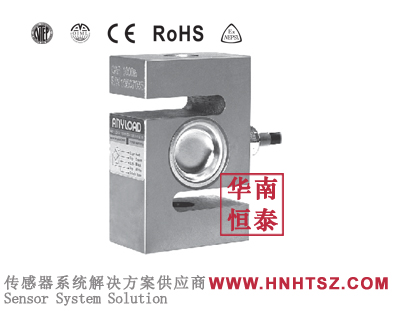

anyload load cell

101nh-凯发k8官方首页

shape: s type load cell
material:alloy steel
load direction：compression & tention
model:101nh-50lb 1101nh-100lb 101nh-250lb 01nh-500lb 101nh-700lb 101nh-1klb 101nh-1.5klb 101nh-2klb 101nh-5klb 101nh-10klb 101nh-15klb 101nh-20klb
product description: 101nh-5klb is a kind of universal material testing machine, which can be used either single or multiple at the same time. it is easy to install and debug. application: mechanical scale transformation

shenzhen huanan hengtai industrial co.,ltd. 101nh-5klb is high accuracy, wide measurement range, long life, simple structure, good frequency response characteristics, can work in adverse conditions, easy to achieve miniaturization, integration and variety diversification.

note: the following information is for reference, please refer to anyload version

【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【anyload load cell 101nh-5klb information】
anyload load cell 101nh-5klb is selling product in china, quality goods, after-sale protection. if you have any question, welcome to e-mail:sales@hnhtsz.com
anyload load cell 101nh-5klb datasheet download：

anyload load cell 101nh-5klb features：

●material: alloy steel

●rated capacities: 25lb, 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1klb, 1.5klb, 2klb, 2.5klb, 3klb, 5klb, 10klb, 15klb, 20klb

●full scale output: 3mv/v ± 1%

●safe overload: 150%

●breaking overload: 300%

●ip rating: ip67

●ntep 1:4 500 class iii, single cell certified from 100lb-500lb

● ntep 1:5 500 class iii, single cell certified from 1klb-20klb

●oiml maa c3, y=17 000 certified from 200kg-1.5t

●oiml maa c4.5, y=14 000 certified from 2t-10t

●ce, rohs and ex certified

●measurement ukraine certified

anyload load cell 101nh-5klb dimension：

anyload load cell 101nh-5klb series models：

101nh-50lb 1101nh-100lb 101nh-250lb 01nh-500lb 101nh-700lb 101nh-1klb 101nh-1.5klb 101nh-2klb 101nh-5klb 101nh-10klb 101nh-15klb 101nh-20klb

101nh-1000lb 101nh-1500lb 101nh-2000lb 101nh-5000lb 101nh-10000lb 101nh-15000lb 101nh-20000lb

shenzhen huanan hengtai industrial co.,ltd . supply 101nh-5klbis structure belongs to the s-type design. the s-type tension pressure sensor is the most commonly used pull and pressure sensor in industrial applications. it is widely used in water conservancy and hydropower, railway transportation, intelligent building, production automation, aerospace, military, petrochemical, oil well, power, ships, machine tools, pipelines and many other industries. the sensor is made of high quality metal and sealed with sealant for easy installation and convenient use. applicable to all kinds of electronic weighing equipment suitable for hook scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine scales, hopper scales, etc.

if you want to know more about 101nh-5klb price, 101nh-5klb delivery time, 101nh-5klb manufacturer, 101nh-5klb product information, 101nh-5klb product specification, 101nh-5klb technical parameters, 101nh-5klb installation and debugging, 101nh-5klb wiring mode, please contact e-mail:sales@hnhtsz.com
