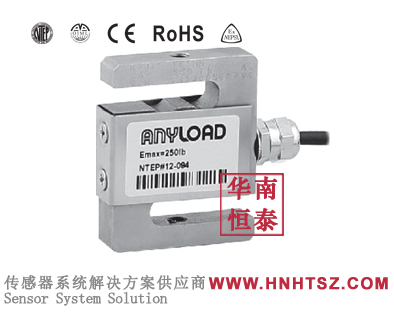

anyload load cell

101nh-凯发k8官方首页

shape: s type load cell
material:alloy steel
load direction：compression & tention
model:101nh-50lb 1101nh-100lb 101nh-250lb 01nh-500lb 101nh-700lb 101nh-1klb 101nh-1.5klb 101nh-2klb 101nh-5klb 101nh-10klb 101nh-15klb 101nh-20klb
product description: 101nh-500lb is a kind of universal material testing machine, which can be used either single or multiple at the same time. it is easy to install and debug. application: mechanical scale transformation

shenzhen huanan hengtai industrial co.,ltd. 101nh-500lb is comparatively delicate, quality conscience, price concessions, durability, texture is very good, design to play on the simple and practical elements, whether it is tension measurement, pressure measurement or other complex weighing design can take into account.

note: the following information is for reference, please refer to anyload version

【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【anyload load cell 101nh-500lb information】
anyload load cell 101nh-500lb is selling product in china, quality goods, after-sale protection. if you have any question, welcome to e-mail:sales@hnhtsz.com
anyload load cell 101nh-500lb datasheet download：

anyload load cell 101nh-500lb features：

●material: alloy steel

●rated capacities: 25lb, 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1klb, 1.5klb, 2klb, 2.5klb, 3klb, 5klb, 10klb, 15klb, 20klb

●full scale output: 3mv/v ± 1%

●safe overload: 150%

●breaking overload: 300%

●ip rating: ip67

●ntep 1:4 500 class iii, single cell certified from 100lb-500lb

● ntep 1:5 500 class iii, single cell certified from 1klb-20klb

●oiml maa c3, y=17 000 certified from 200kg-1.5t

●oiml maa c4.5, y=14 000 certified from 2t-10t

●ce, rohs and ex certified

●measurement ukraine certified

anyload load cell 101nh-500lb dimension：

anyload load cell 101nh-500lb series models：

101nh-50lb 1101nh-100lb 101nh-250lb 01nh-500lb 101nh-700lb 101nh-1klb 101nh-1.5klb 101nh-2klb 101nh-5klb 101nh-10klb 101nh-15klb 101nh-20klb

101nh-1000lb 101nh-1500lb 101nh-2000lb 101nh-5000lb 101nh-10000lb 101nh-15000lb 101nh-20000lb

shenzhen huanan hengtai industrial co.,ltd . supply 101nh-500lbis s structure is designed, it can be physical signal into electrical signal to accurately measure, tension sensor is also called resistance strain sensor, tension sensor has simple structure, wide measuring range, high precision, can adapt to all kinds of bad conditions, such as hook scales, belt scales, batching systems, packing scale, mechanical and electrical combination scale and special load device, crane scale, machine to scale, hopper scale and other various types of electronic weighing equipment.

if you want to know more about 101nh-500lb price, 101nh-500lb delivery time, 101nh-500lb manufacturer, 101nh-500lb product information, 101nh-500lb product specification, 101nh-500lb technical parameters, 101nh-500lb installation and debugging, 101nh-500lb wiring mode, please contact e-mail:sales@hnhtsz.com
