anyload load cell

101nh-凯发k8官方首页

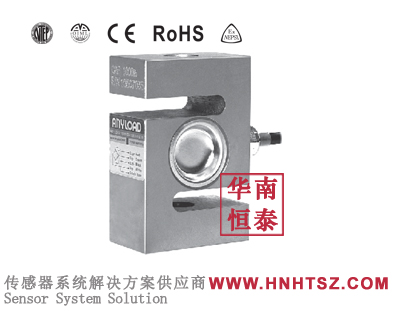

shape: s type load cell
material:alloy steel
load direction：compression & tention
model:101nh-50lb 1101nh-100lb 101nh-250lb 01nh-500lb 101nh-700lb 101nh-1klb 101nh-1.5klb 101nh-2klb 101nh-5klb 101nh-10klb 101nh-15klb 101nh-20klb
product description: 101nh-20000lb is a kind of universal material testing machine, which can be used either single or multiple at the same time. it is easy to install and debug. application: mechanical scale transformati

shenzhen huanan hengtai industrial co.,ltd. 101nh-20000lb is comparatively delicate, quality conscience, price concessions, durability, texture is very good, design to play on the simple and practical elements, whether it is tension measurement, pressure measurement or other complex weighing design can take into account.

note: the following information is for reference, please refer to anyload version

【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【anyload load cell 101nh-20000lb information】
anyload load cell 101nh-20000lb is selling product in china, quality goods, after-sale protection. if you have any question, welcome to e-mail:sales@hnhtsz.com
anyload load cell 101nh-20000lb datasheet download：

anyload load cell 101nh-20000lb features：

●material: alloy steel

●rated capacities: 25lb, 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1klb, 1.5klb, 2klb, 2.5klb, 3klb, 5klb, 10klb, 15klb, 20klb

●full scale output: 3mv/v ± 1%

●safe overload: 150%

●breaking overload: 300%

●ip rating: ip67

●ntep 1:4 500 class iii, single cell certified from 100lb-500lb

● ntep 1:5 500 class iii, single cell certified from 1klb-20klb

●oiml maa c3, y=17 000 certified from 200kg-1.5t

●oiml maa c4.5, y=14 000 certified from 2t-10t

●ce, rohs and ex certified

●measurement ukraine certified

anyload load cell 101nh-20000lb dimension：

anyload load cell 101nh-20000lb series models：

101nh-50lb 1101nh-100lb 101nh-250lb 01nh-500lb 101nh-700lb 101nh-1klb 101nh-1.5klb 101nh-2klb 101nh-5klb 101nh-10klb 101nh-15klb 101nh-20klb

101nh-1000lb 101nh-1500lb 101nh-2000lb 101nh-5000lb 101nh-10000lb 101nh-15000lb 101nh-20000lb

shenzhen huanan hengtai industrial co.,ltd . supply 101nh-20000lbis structure belongs to the s-type design. the s-type tension pressure sensor is the most commonly used pull and pressure sensor in industrial applications. it is widely used in water conservancy and hydropower, railway transportation, intelligent building, production automation, aerospace, military, petrochemical, oil well, power, ships, machine tools, pipelines and many other industries. the sensor is made of high quality metal and sealed with sealant for easy installation and convenient use. applicable to all kinds of electronic weighing equipment suitable for hook scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine scales, hopper scales, etc.

if you want to know more about 101nh-20000lb price, 101nh-20000lb delivery time, 101nh-20000lb manufacturer, 101nh-20000lb product information, 101nh-20000lb product specification, 101nh-20000lb technical parameters, 101nh-20000lb installation and debugging, 101nh-20000lb wiring mode, please contact e-mail:sales@hnhtsz.com
