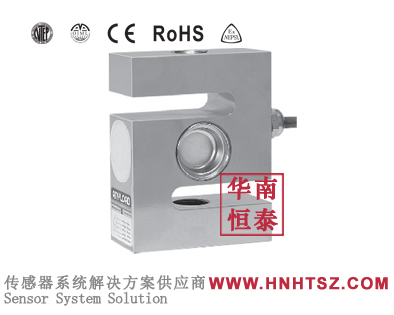

anyload load cell

101bs-凯发k8官方首页

shape: s type load cell
material:17-4ph stainless steel
load direction：compression & tention
model:101bs-300kg 101bs-500kg 101bs-1t 101bs-2t 101bs-5t 101bs-10t 101bs-500lb 101bs-1klb 101bs-1.5klb 101bs-2klb 101bs-5klb 101bs-10klb 101bs-15klb 101bs-20klb
product description: 101bs-5000lb is a kind of universal material testing machine, which can be used either single or multiple at the same time. it is easy to install and debug. application: mechanical scale transformatio

shenzhen huanan hengtai industrial co.,ltd 101bs-5000lb is high accuracy, wide measurement range, long life, simple structure, good frequency response characteristics, can work in adverse conditions, easy to achieve miniaturization, integration and variety diversification.

note: the following information is for reference, please refer to anyload version

【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【anyload load cell 101bs-5000lb information】
anyload load cell 101bs-5000lb is hot selling product in china, quality goods, after-sale protection. if you have any question, welcome to e-mail:sales@hnhtsz.com
anyload load cell 101bs-5000lb datasheet download：

anyload load cell 101bs-5000lb features：

●material: stainless steel

●rated capacities: 500lb, 1klb, 1.5klb, 2klb, 2.5klb, 3klb, 5klb, 10klb, 15klb, 20klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t

●full scale output: 2mv/v ± 1%

●safe overload: 150%

●breaking overload: 300%

●ip rating: ip68

●ntep 1:4 500 class iii, single cell certified from 100lb-500lb

●ntep 1:5 500 class iii, single cell certified from 1klb-20klb

●oiml maa c3, y=17 000 certified from 200kg-1.5t

●maa c4.5, y=14 000 certified from 2t-10t

●ce, rohs and ex certified

●measurement ukraine certified

anyload load cell 101bs-5000lb dimension：

anyload load cell 101bs-5000lb series models：

101bs-300kg 101bs-500kg 101bs-1t 101bs-2t 101bs-5t 101bs-10t 101bs-500lb 101bs-1klb 101bs-1.5klb 101bs-2klb 101bs-5klb 101bs-10klb 101bs-15klb 101bs-20klb

101bs-1000kg 101bs-2000kg 101bs-5000kg 101bs-10000kg

101bs-1000lb 101bs-1500lb 101bs-2000lb 101bs-5000lb 101bs-10000lb 101bs-15000lb 101bs-20000lb

shenzhen huanan hengtai industrial co.,ltd supply 101bs-5000lbis made of high quality metal, and the edge is sealed with rubber to improve the performance stability and life of the load cell. at the same time, the upper and lower hole thread design makes the installation convenient and simple, and it is very convenient to use. the measuring force of the sensor has become one of the very wide-ranging models, such as electronic weighing weighing for crane scales, batching scales, machine-changing scales, etc.

if you want to know more about 101bs-5000lb price, 101bs-5000lb delivery time, 101bs-5000lb manufacturer, 101bs-5000lb product information, 101bs-5000lb product specification, 101bs-5000lb technical parameters, 101bs-5000lb installation and debugging, 101bs-5000lb wiring mode, please contact e-mail:sales@hnhtsz.com
