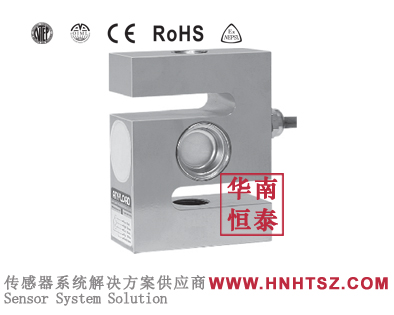

shenzhen huanan hengtai industrial co.,ltd 101bs-1t is due to the particularity of the upper and lower holes, the load cell can be used for tension measurement, pressure measurement and internal potting sealing. it provides convenience for the load cell to be used in various environments. due to the tightness of the seal, it is ensured that the load cell is not affected by the surrounding environment during use, ensuring the stability of the data during use and prolonging the service life of the load cell, for example in a humid environment. in the case of dust or air chaos, it is dust-proof; in the case of heavy oil or pollution, it has anti-fouling and oil-proof effects; therefore, the load cell is a widely used sensor.
note: the following information is for reference, please refer to anyload version
【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【anyload load cell 101bs-1t information】
anyload load cell 101bs-1t is hot selling product in china, quality goods, after-sale protection. if you have any question, welcome to e-mail:sales@hnhtsz.com
anyload load cell 101bs-1t datasheet download：
anyload load cell 101bs-1t features：
●material: stainless steel
●rated capacities: 500lb, 1klb, 1.5klb, 2klb, 2.5klb, 3klb, 5klb, 10klb, 15klb, 20klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t
●full scale output: 2mv/v ± 1%
●safe overload: 150%
●breaking overload: 300%
●ip rating: ip68
●ntep 1:4 500 class iii, single cell certified from 100lb-500lb
●ntep 1:5 500 class iii, single cell certified from 1klb-20klb
●oiml maa c3, y=17 000 certified from 200kg-1.5t
●maa c4.5, y=14 000 certified from 2t-10t
●ce, rohs and ex certified
●measurement ukraine certified
anyload load cell 101bs-1t series models：
101bs
101bs
101bs
shenzhen huanan hengtai industrial co.,ltd supply 101bs-1tis made of high quality metal, and the edge is sealed with rubber to improve the performance stability and life of the load cell. at the same time, the upper and lower hole thread design makes the installation convenient and simple, and it is very convenient to use. the measuring force of the sensor has become one of the very wide-ranging models, such as electronic weighing weighing for crane scales, batching scales, machine-changing scales, etc.
if you want to know more about 101bs-1t price, 101bs-1t delivery time, 101bs-1t manufacturer, 101bs-1t product information, 101bs-1t product specification, 101bs-1t technical parameters, 101bs-1t installation and debugging, 101bs-1t wiring mode, please contact e-mail:sales@hnhtsz.com
