anyload load cell

101bs-凯发k8官方首页

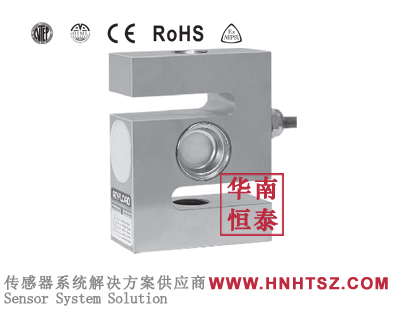

shape: s type load cell
material:17-4ph stainless steel
load direction：compression & tention
model:101bs-300kg 101bs-500kg 101bs-1t 101bs-2t 101bs-5t 101bs-10t 101bs-500lb 101bs-1klb 101bs-1.5klb 101bs-2klb 101bs-5klb 101bs-10klb 101bs-15klb 101bs-20klb
product description: 101bs-10000kg is a kind of universal material testing machine, which can be used either single or multiple at the same time. it is easy to install and debug. application: mechanical scale transformati

shenzhen huanan hengtai industrial co.,ltd 101bs-10000kg is from the world's first-class factory manufacturing, has through a variety of testing quality assurance, so that each weighing sensor materials meet national standards, weighing sensor surface photometry, no obvious sand holes, no deformation, weighing sensor size precision, thus ensuring the accuracy and stability of force data.

note: the following information is for reference, please refer to anyload version

【support services】
warranty period: 12 months
provide sensor technology support and selection recommendation
【anyload load cell 101bs-10000kg information】
anyload load cell 101bs-10000kg is hot selling product in china, quality goods, after-sale protection. if you have any question, welcome to e-mail:sales@hnhtsz.com
anyload load cell 101bs-10000kg datasheet download：

anyload load cell 101bs-10000kg features：

●material: stainless steel

●rated capacities: 500lb, 1klb, 1.5klb, 2klb, 2.5klb, 3klb, 5klb, 10klb, 15klb, 20klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t

●full scale output: 2mv/v ± 1%

●safe overload: 150%

●breaking overload: 300%

●ip rating: ip68

●ntep 1:4 500 class iii, single cell certified from 100lb-500lb

●ntep 1:5 500 class iii, single cell certified from 1klb-20klb

●oiml maa c3, y=17 000 certified from 200kg-1.5t

●maa c4.5, y=14 000 certified from 2t-10t

●ce, rohs and ex certified

●measurement ukraine certified

anyload load cell 101bs-10000kg dimension：

anyload load cell 101bs-10000kg series models：

101bs-300kg 101bs-500kg 101bs-1t 101bs-2t 101bs-5t 101bs-10t 101bs-500lb 101bs-1klb 101bs-1.5klb 101bs-2klb 101bs-5klb 101bs-10klb 101bs-15klb 101bs-20klb

101bs-1000kg 101bs-2000kg 101bs-5000kg 101bs-10000kg

101bs-1000lb 101bs-1500lb 101bs-2000lb 101bs-5000lb 101bs-10000lb 101bs-15000lb 101bs-20000lb

shenzhen huanan hengtai industrial co.,ltd supply 101bs-10000kgis using resistance strain type weighing sensor principle of work, under the effect of external force, the elastomer (elastic element, sensitive beam) can produce elastic deformation, make its surface of the paste resistance strain gauge (cell) also with deformation and deformation, the resistance strain gauge, it will become bigger or smaller, and then through the corresponding measurement circuit to convert the resistance to electrical signals (voltage or current).

if you want to know more about 101bs-10000kg price, 101bs-10000kg delivery time, 101bs-10000kg manufacturer, 101bs-10000kg product information, 101bs-10000kg product specification, 101bs-10000kg technical parameters, 101bs-10000kg installation and debugging, 101bs-10000kg wiring mode, please contact e-mail:sales@hnhtsz.com
