the gf transmitter 3-9900-1p is a member of the signet smartpro® transmitter family, providing a single-channel interface for all flow rates, ph/orp, conductivity/resistivity, salinity, pressure, temperature, liquid level, dissolved oxygen, batch applications and other applications.

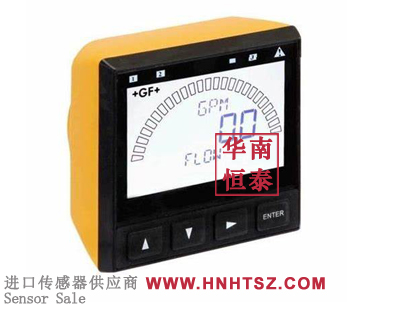

the gf transmitter 3-9900-1p is available for panel installation or on-site installation. it can operate under a power supply of 10.8-35.2vdc (rated 24vdc), and can power certain sensors through loop power supply. it also allows third-party 4-20ma signals to be used as input (signet 8058 i-go® signal converter is required). sold separately.

the ph and orp electrodes require signet 2750/2751 dryloc ® sensor electronic components (sold separately).

● conductivity/resistivity or salinity measurement requires the selection of a direct conductivity/resistivity module (part number 3-9900.394) or signet 2850 conductivity/resistivity sensor electronic component (sold separately). note: if 2850 is used, please use the single-channel digital (s³l) model. if the dual-channel model 3-2850-63 is used, only one channel can be connected. do not use it when both channels are connected. the 4-20ma models 3-2850-52 and 3-2850-62 are incompatible with 9900.

optional modules and accessories available for gf transmitter 3-9900-1p:

a. basic units (required)

b. the h comm or modbus module is optional

c. optional conductivity/resistivity, batch application or 4-20ma output module

d. optional relay modules (models not suitable for on-site installation) are sold separately for each item. the module can be replaced on-site at any time

display range:

ph 0.00-15.00 ph

ph temperature: -99 °c - 350 °c -146 °f - 662 °f

orp -1999 -1999 9.9 mv

flow rate: 0.0000-99,999 units per second, minutes, hours or days

cumulative quantity: 0.00-99999999 units

conductivity: 0.0000-99999 μs, ms, ppm and ppb (tds), kω, mω

conductivity temperature: -99 °c - 350 °c - 146 °f - 662 °f

temperature: -99 °c - 350 °c - 146 °f - 662 °f

pressure: -40-1000 psi

liquid level -9999-99999 m, cm, ft, in, %

volume: 0-99999 cm ³, m ³, in ³, ft ³, gal, l, lb, kg, %

salinity: 0-100 ppt

basic unit of 9900 transmitter:

single-channel, multi-parameter, 4-20ma, collector open circuit, dc power supply

manufacturer component number order code description

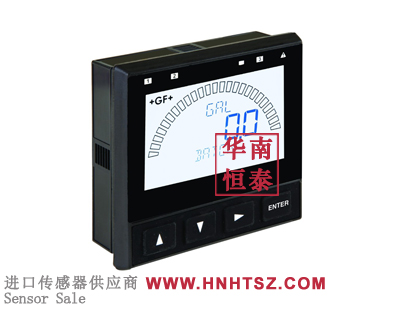

3-9900-1p 159 001 695 9900 basic unit, panel installation

3-9900-1159 001 696 9900 basic unit, on-site installation

optional module

3-9900.393 159 001 698 relay module -2dcr (dry contact relay)

3-9900.394 159 001 699 direct conductivity/resistivity module

3-9900.395 159 001 697 h comm module

batch 3-9900.397 159 310 163 application modules

3-9900.398-159001 784 4-20ma output module

3-9900.270-m2 159 200 121 modbus module with terminal block assembly (only applicable to board mounting models)

3-9900.270-m3 159 200 122 modbus module with m12 connector assembly (applicable to on-site installation models only)

3-9900.270-m4 159 200 128 modbus module with cable assembly

attachment 6682-0204 159 001 709 conductivity sensor module plug, 4 ports, right angle

6682-1102 159 001 710 collector open circuit plug, 2 ports, right angle

6682-1103 159 001 711 relay module, 3 ports, right angle

6682-1104 159 001 712 power supply/circuit plug, 4 ports, right angle

6682-3104 159 001 713 frequency /s³l plug, 4 ports, right angle

6682-3004 159 001 725 frequency /s³l plug, embedded

7310-1024 159 873,004 24vdc power supply, 10w, 0.42a

7310-2024 159 873,005 24vdc power supply, 24w, 1.0a

7310-4024 159 873,006 24vdc power supply, 40w, 1.7a

7310-6024 159 873 007 24vdc power supply, 60w, 2.5a

7310-7024 159 873,008 24vdc power supply, 96w, 4.0a

3-0252 159 001 808 0252 configuration tool

3-8050 159 000 184 universal installation kit

3-8050.396 159,000 617 rc filter kit (for relays), 2 for each kit

3-8051 159 000 187 integrated installation kit for flow sensor, npt, valox

3-8051-1 159 001 755 flow sensor integrated installation kit, npt, pp

3-8051-2 159 001 756 integrated installation kit for flow sensor, npt, pvdf

3-8052 159 000 188 ¾ in. integrated mounting piece

3-8058-1 159000 966 i-go signal converter, wiring and installation

3-8058-2 159000 967 i-go signal converter, din rail mounting

3-9900.390 159 001 714 standard connector kit, right angle (this kit is included in the 9900 transmitter)

3-9900.391 159 001 715 connector kit, embedded, 9900 transmitter

3-9900.392 159 001 700 9900 wall installation accessories

3-9000.392-159,000 839 waterproof connector kit, npt (1 pc.)

3-9900.396 159 001 701 angle adjustment adapter kit (for on-site installation)

3-9900.399-1159 001 834 rear shell kit, articulated cover plate

3-9900.399-2159 001 835 rear shell kit, flat cover plate

replacement terminal block assembly of 3-9900.270-cb2 159 200 124 m2

replacement m12 connector assembly for 3-9900.270-cb3 159 200 125 m3

replacement cable assembly for 3-9900.270-cb4 159 200 129 m4

5541-5005 159 855,021 5-meter m12 cable

5540-5010 159 855 022 10-meter m12 cable

the above information is subject to the official website of gf
