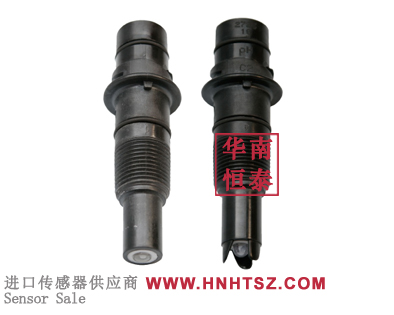

the industrial-grade online ph probe sensor 3-2724-10 produced by george fischer ( gf ) of the united states features a flat-head design. it is made of ryton material and uses dryloc® sealed connection technology, offering strong corrosion resistance. it is suitable for ph monitoring in water treatment, chemical and other fields, with a long service life and high stability.

type 2724/2726 dryloc ph/orp electrode

ph/orp:

• contact materials: ryton, uhmw polyethylene, fkm, glass

• connection: durable dryloc® interface with gold-plated connection points

compatible preamplifier/sensor electronic components: 2750 and 2760

• compatible transmitter: the 2760 preamplifier is used in conjunction with the signet 8750; 2750 sensor electronic components and signet

8900,9900 or 9950 transmitters are used in combination

• additional features: offers hf and lc options

• online installation method: standard 3/4-inch or iso threaded fittings

• immersion installation: the back of the preamplifier or sensor electronic components can be utilized

• applications: water treatment, water quality monitoring, etc.

mfr# electrode   type          temperature compensation     connection mode

3-2724-00           ph flat        pt1000                                  ¾ inch npt thread

3-2724-01           ph plane     pt1000                                  iso 7/1-r3/4 thread

3-2724-10           ph flat        3k                                         ¾ -inch npt thread

3-2724-11           ph plane     3k                                         iso 7/1-r3/4 thread

3-2725-60           orp flat                                                  ¾ -inch npt thread

3-2725-61           orp plane                                               iso 7/1-r3/4 thread

3-2726-00           ph spherical pt1000                                 ¾ inch npt thread

3-2726-01           ph spherical pt1000                                 iso 7/1-r3/4 thread

3-2726-10           ph spherical 3k                                        ¾ inch npt thread

3-2726-11           ph spherical surface 3k                             iso 7/1-r3/4 thread

3-2726-hf-00      ph spherical surface, resistant to hf pt1000 ¾ -inch npt thread

3-2726-hf-01      ph spherical surface, hf pt1000 resistant iso 7/1-r3/4 thread

3-2726-hf-10      ph spherical surface, resistant to hf 3k       ¾ -inch npt thread

3-2726-hf-11      ph spherical surface, hf resistant 3k           iso 7/1-r3/4 thread

3-2726-lc-00      ph spherical surface, low electrical conductivity pt1000 ¾ -inch npt thread

3-2726-lc-01      ph spherical surface, low electrical conductivity pt1000 iso 7/1-r3/4 thread

3-2726-lc-10      ph spherical surface, low electrical conductivity 3k ¾ -inch npt thread

3-2726-lc-11      ph spherical surface, low electrical conductivity 3k iso 7/1-r3/4 thread

3-2724-hf-10      ph plane, resistant to hf 3k                           ¾ -inch npt thread

3-2724-hf-11      ph plane, resistant to hf 3k                           iso 7/1-r3/4 thread

mfr#           code

3-2724-00 159001545

3-2724-01 159001546

3-2724-10 159001547

3-2724-11 159001548

3-2725-60 159001561

3-2725-61 159001562

3-2726-00 159001553

3-2726-01 159001554

3-2726-10 159001555

3-2726-11 159001556

3-2726-hf-00 159001549

3-2726-hf-01 159001550

3-2726-hf-10 159001551

3-2726-hf-11 159001552

3-2726-lc-00 159001557

3-2726-lc-01 159001558

3-2726-lc-10 159001559

3-2726-lc-11 159001560

3-2724-hf-10 159001771

3-2724-hf-11 159001772
